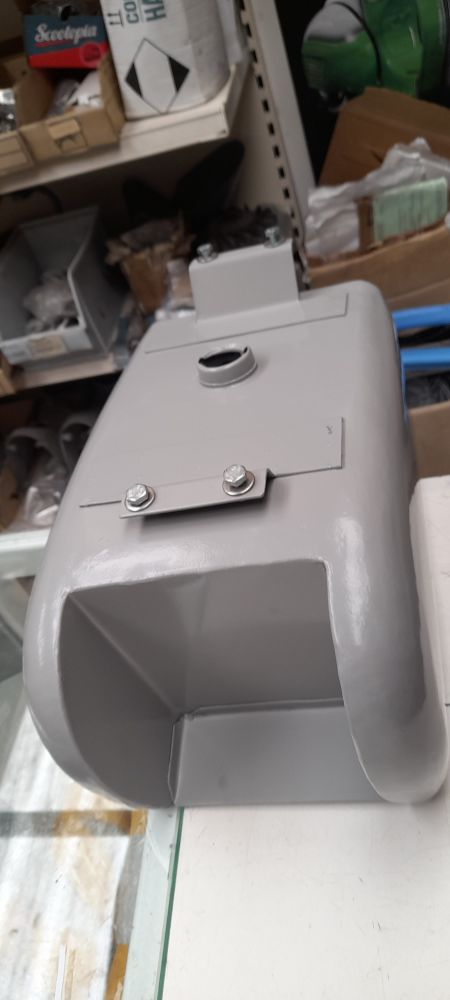

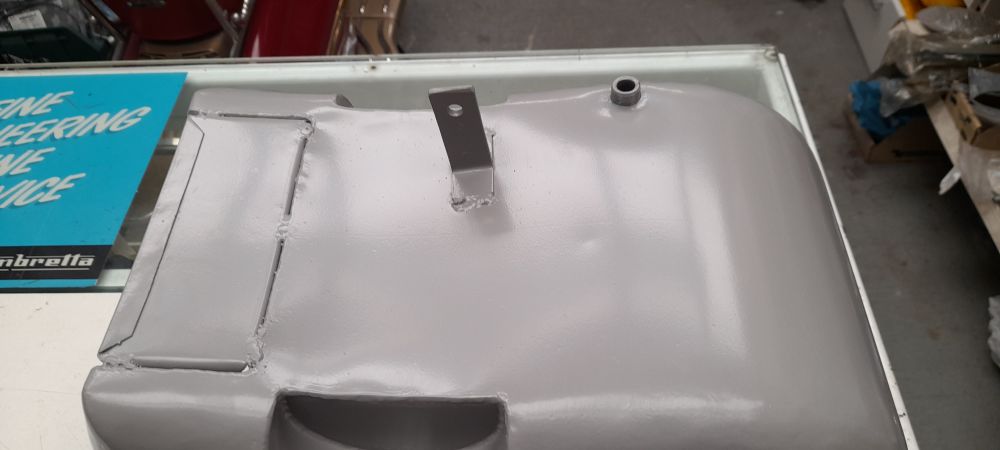

In stock now are our 16 litre long range fuel tank which are cut out either side with recess so as you can keep a toolbox, The Tank is steel and supplied in primer
Tanks are bolt in so no ridiculous straps and are solidly mounted
Takes standard fast flow fuel tap however it is wise to blow through with an airline before fitting any tank and a rear fed tap is advised
Tank can be used on Italian & Indian Series 1 2 and 3 Lambretta scooters
Once purchased if you are having difficulties please do not contact me telling me it doesn’t fit, pictures are supplied showing the tank fitted to an Indian GP If you are struggling then please look to the assistance of a professional
This tank is very fiddly to fit, the frame needs to preferably be bare, the rear bracket must be loosely fitted to the tank before sliding under frame loop
Front fixing bolts go through your seat then the front holes of your frame first, then attach to bracket before attaching bracket to the tank you may need to bend the bracket slightly
Please view ALL THE PICTURES
When fitting this tank do not tighten any of the bolts until the tank is in position, attach rear bracket loosely to the tank and place tank under frame loop, lift rear of tank and line up rear bracket with 2 forward seat catch bracket holes and fasten through the seat bracket into captive nuts on the tank rear bracket, once all bolts are in place then they can be tightened but do not over tighten as this can cause vibration, torque setting of 3.5-3.8LBS-FT should be adequate, all brackets must be attached. Although not supplied by the manufacturer we recommend the use of footboard round rubbers between brackets and frame when fitting
